Product Overview

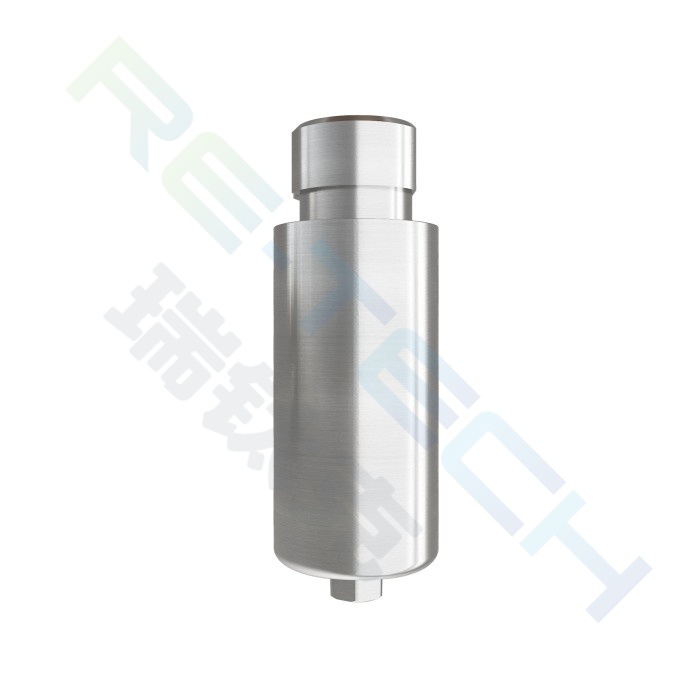

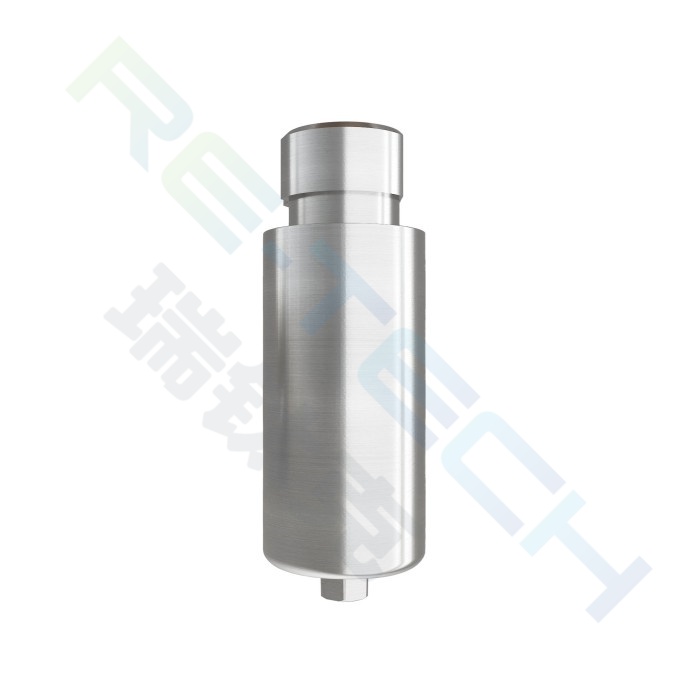

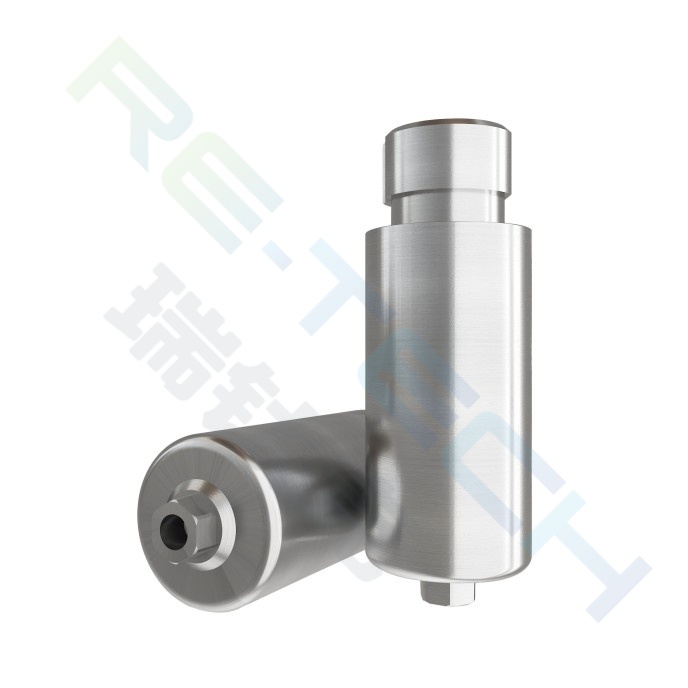

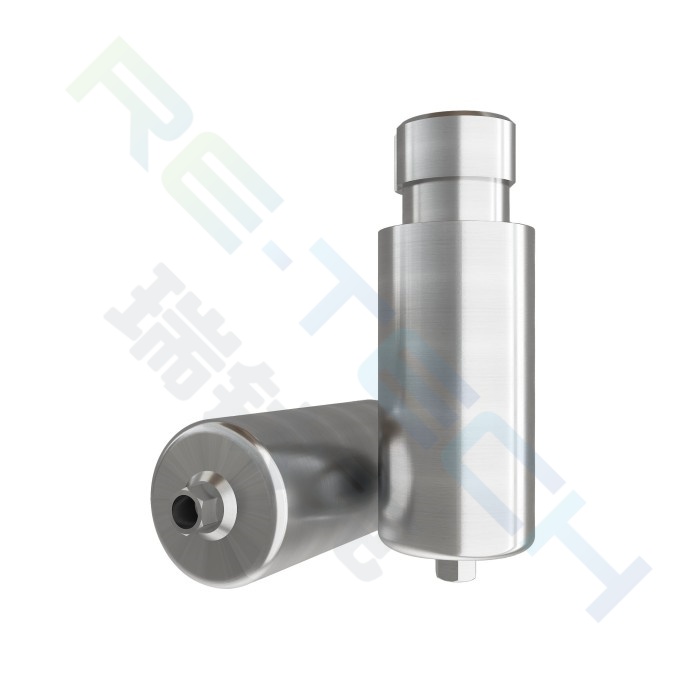

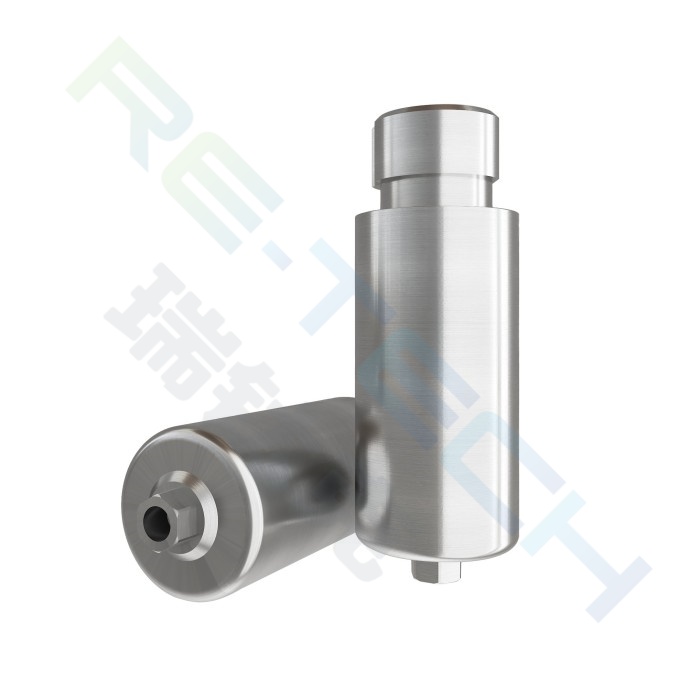

Pre-milled Ti-blanks compatible with Zimmer™ are matched to Zimmer implant platforms. They are prefabricated titanium substrates dedicated to custom abutment fabrication in CAD/CAM machining centers. The bottom interface is pre-finished, and only the superstructure needs milling to form a one-piece abutment, compatible with a wide range of clinical restorative protocols.

Product Material

Medical-grade TC4 titanium alloy with uniform microstructure. It features good fatigue resistance, corrosion resistance and favorable biocompatibility.

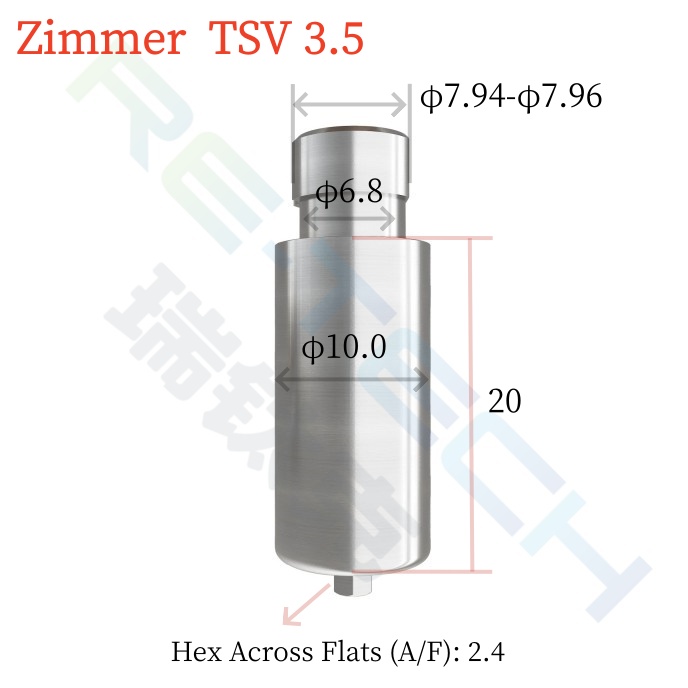

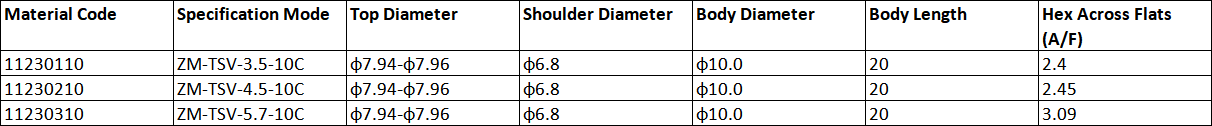

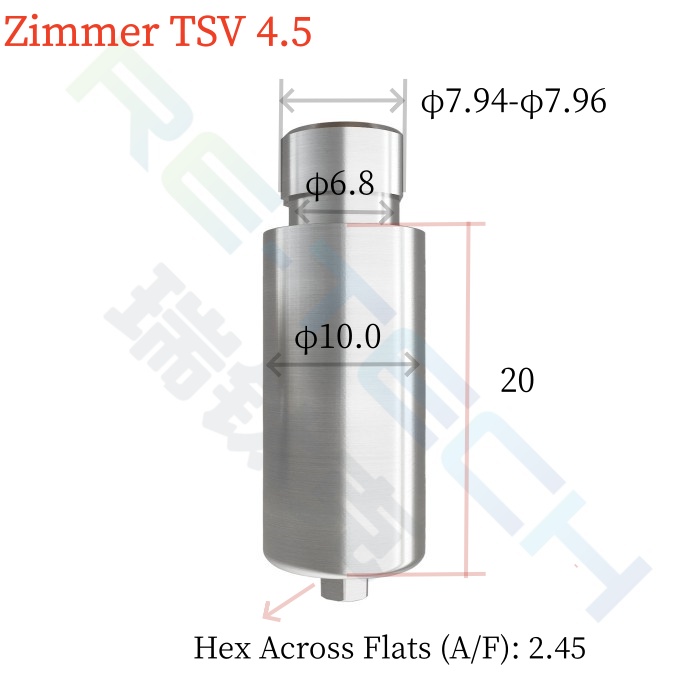

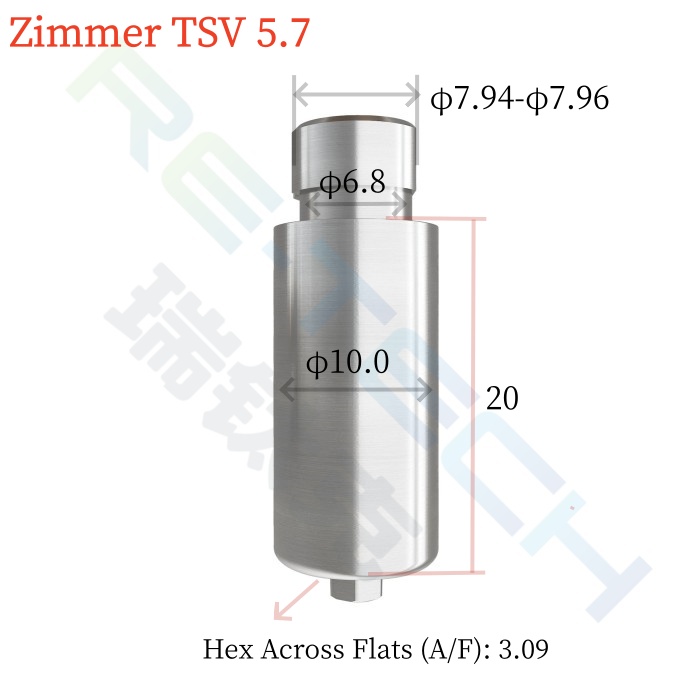

Main Specifications & Parameters

A variety of blank diameters and milling heights are available, compatible with all interface models of the Zimmer platform and mainstream dental milling machines and CAD software.

（Unit: mm）

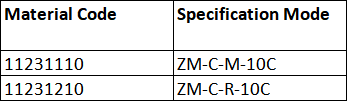

Other Available Specifications

（For more specifications, please refer to the product catalog or contact our customer service.）

Scope of Application

Compatible with Zimmer implant platforms for dental laboratories to digitally mill custom abutments. It is used for single-tooth and multi-unit fixed bridge restorations and can handle restorative cases such as angled implants.

Product Advantages

• Precisely pre-machined interface requiring no secondary cutting, ensuring tight fit with the implant and reducing micro-leakage.

• Stable positioning structure enables convenient digital alignment, lowers machining errors and delivers high consistency of finished products.

• Ample milling allowance reserved for flexible design of emergence profiles to adapt to varying gingival conditions.

• Reliable mechanical properties of the blank withstand posterior occlusal loads and provide excellent long-term restoration stability.

• Supports adjustment of screw channel angles to balance restoration strength and aesthetic outcomes.

• Fewer cutting operations reduce tool wear and improve productivity of dental laboratories.
