Pre-milled Ti-blanks compatible with Straumann TL™

Pre-milled Ti-blanks compatible with Straumann TL™

Product Overview

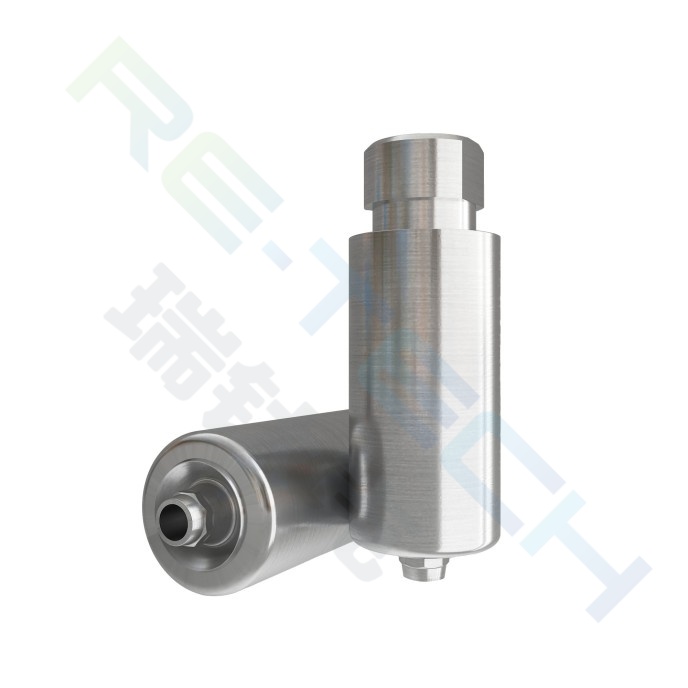

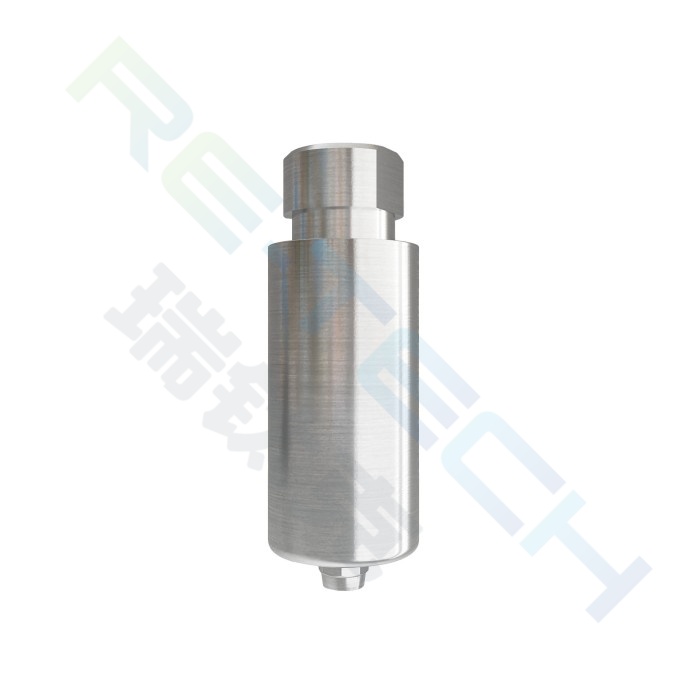

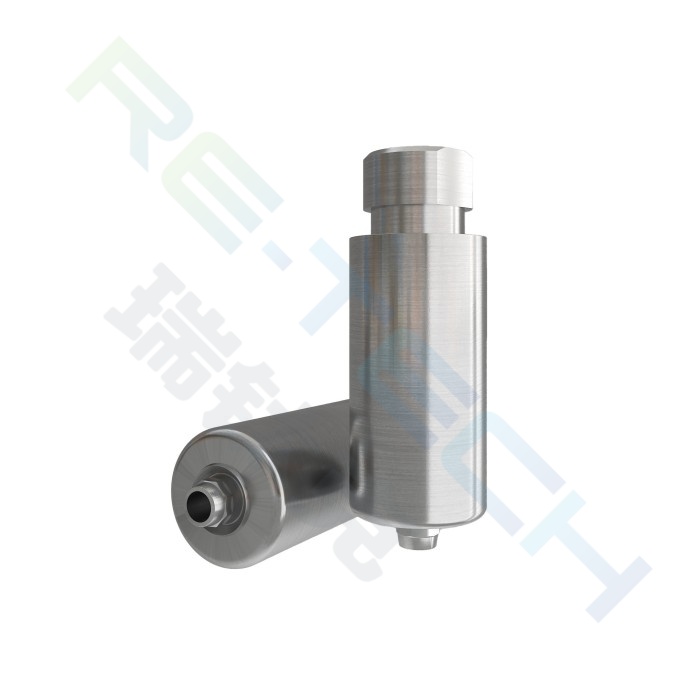

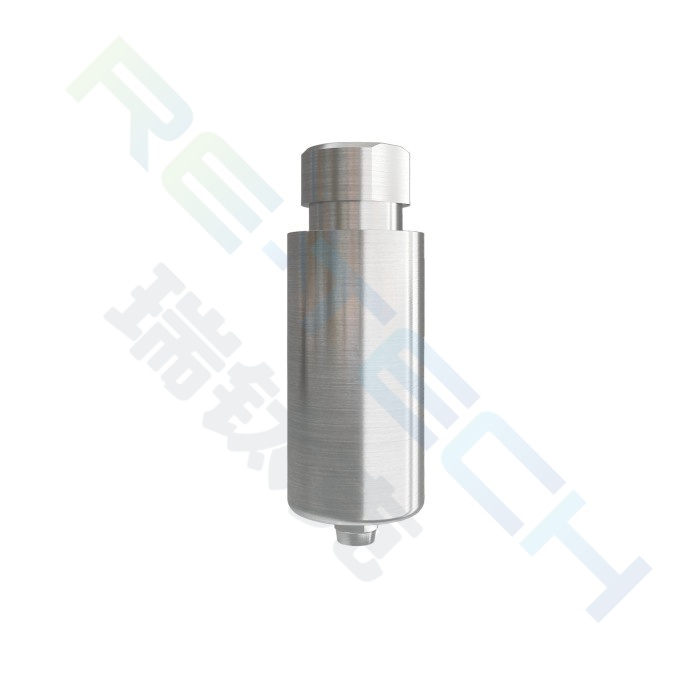

Pre-milled Ti-blanks compatible with Straumann TL™ are designed for Straumann TL bone-level implant platforms. They are prefabricated titanium substrates for dental CAD/CAM milling of custom abutments in digital dental laboratories. The implant interface is pre-machined with high precision at the factory, so no further machining is required on the connection area. Only the superstructure needs to be milled by CNC machines to fabricate one-piece custom titanium abutments rapidly. Suitable for restorative cases in anterior aesthetic zones and posterior functional zones, it enables the full digital workflow from intraoral scanning, CAD design to milling fabrication.

Product Material

Medical-grade TC4 titanium alloy with uniform and stable internal microstructure and excellent mechanical strength, meeting long-term loading requirements for dental restorations.

Main Specifications & Parameters

Matching restoration screws are sold separately. Multiple blank diameters and milling heights are available.

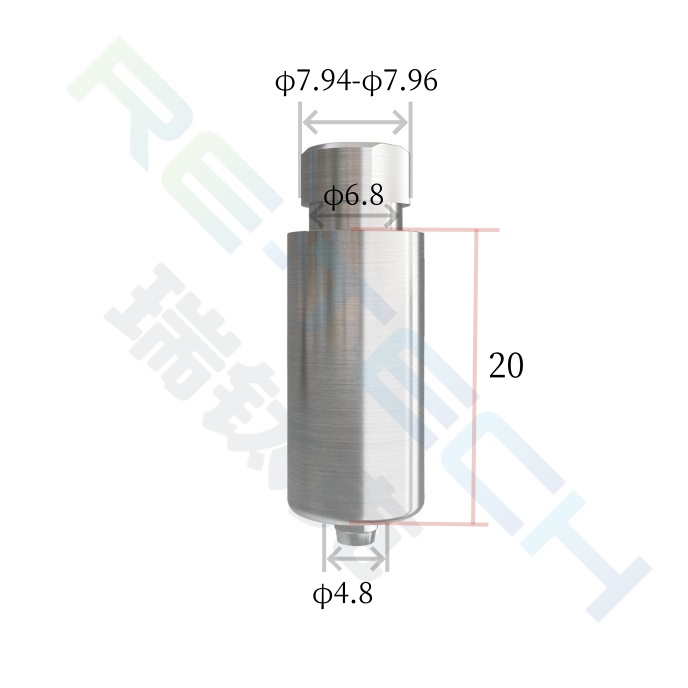

11130110：STR-TL-R-10C（Unit: mm）

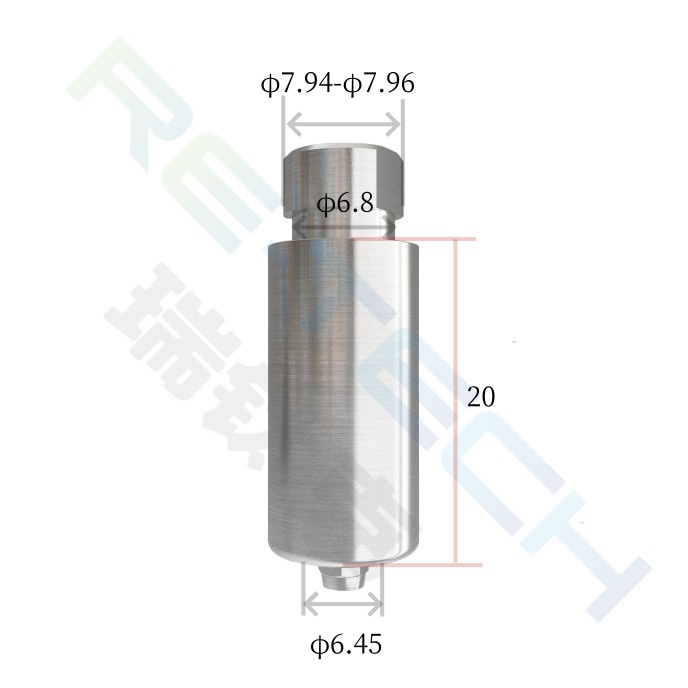

11130210：STR-TL-W-10C（Unit: mm）

Other Available Specifications

（For more specifications, please refer to the product catalog or contact our customer service.）

Scope of Application

Compatible with Straumann TL bone-level implant platforms. Intended for digital milling of one-piece custom abutments in dental laboratories. It can be used for single-tooth and multi-unit fixed bridge restorations, meeting personalized restorative demands for varied gingival heights and tilted implant cases.

Product Advantages

• Pre-machined Interface: The implant connection section is precision pre-milled before delivery. No cutting on the interface is needed, eliminating machining errors, ensuring tight fit between abutment and implant, and preventing micro-gap and micro-leakage.

• Full Compatibility with Digital Workflow: Works with mainstream dental CAD software and CNC milling equipment. Stable machining process reduces technicians’ operation difficulty and shortens dental production lead time.

• Reliable Material Performance: Made of medical TC4 titanium alloy with great bending resistance and fatigue resistance. Resists deformation in oral environment over long service life and offers favorable biocompatibility.

• Wide Range of Sizes: Multiple platform interfaces and blank dimensions available to address complex clinical conditions such as thin gingiva in anterior aesthetic regions and heavy occlusal force in posterior areas.

• High Machining Tolerance: Sufficient milling area reserved to support customized emergence profiles and angled screw channel designs, flexibly realizing dentists’ restorative plans.

• Reduced Consumable Loss: Eliminates full milling from solid titanium blocks, lowering tool wear, boosting laboratory productivity and cutting processing costs.
