type：13131101b/13131102b/13131103b/13131104b
Platform：
BL NC Conical Φ4.5 H=2mm
BL NC Conical Φ4.5 H=6mm
BL NC Conical Φ4.5 H=8mm
BL NC Conical Φ4.5 H=10mm
We can customize it privately, if you have any needs, please contact us!

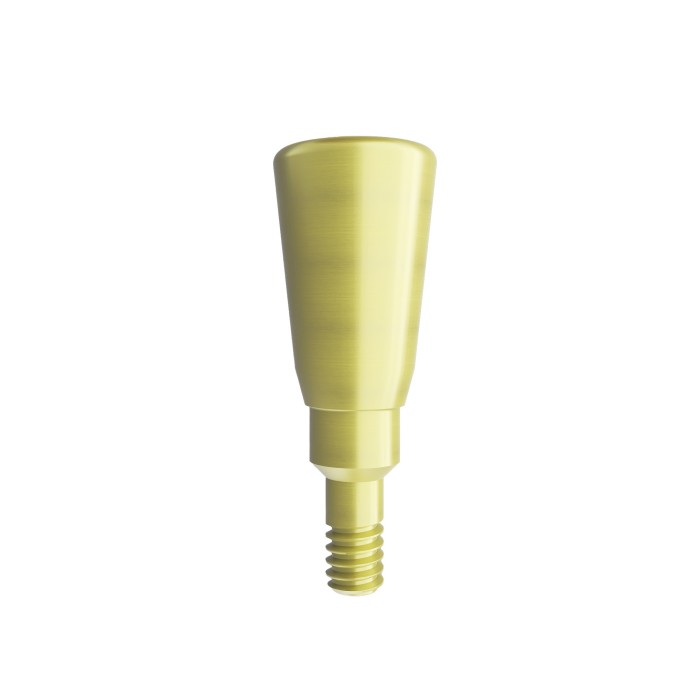

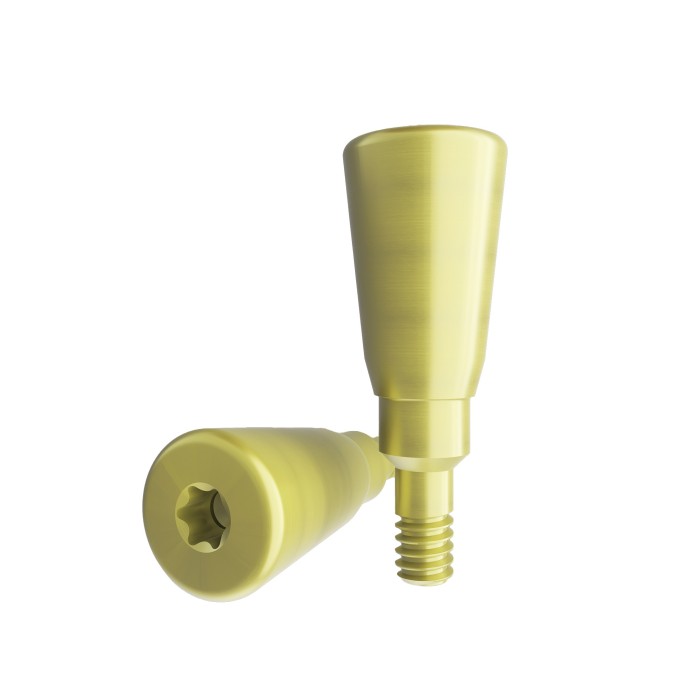

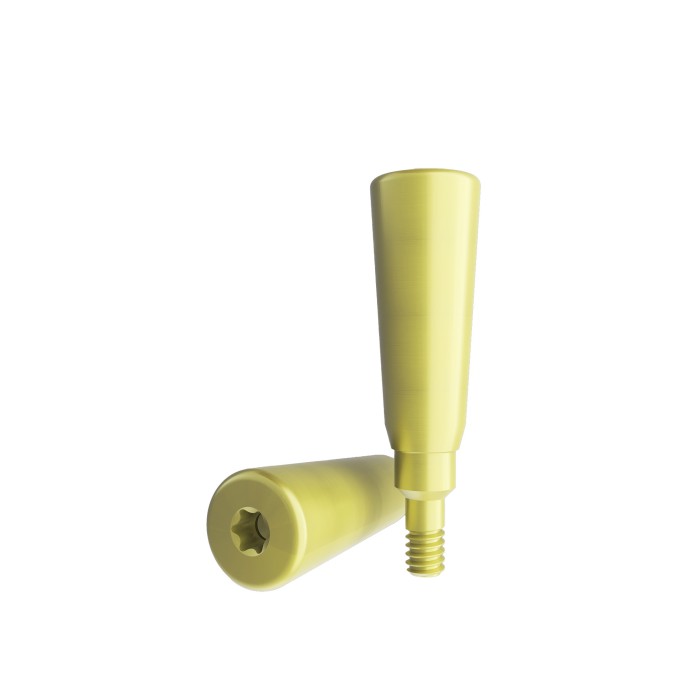

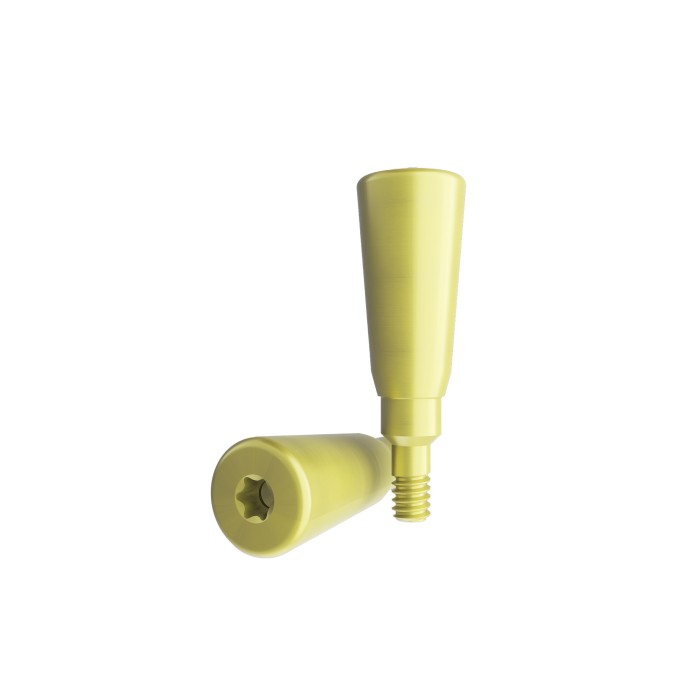

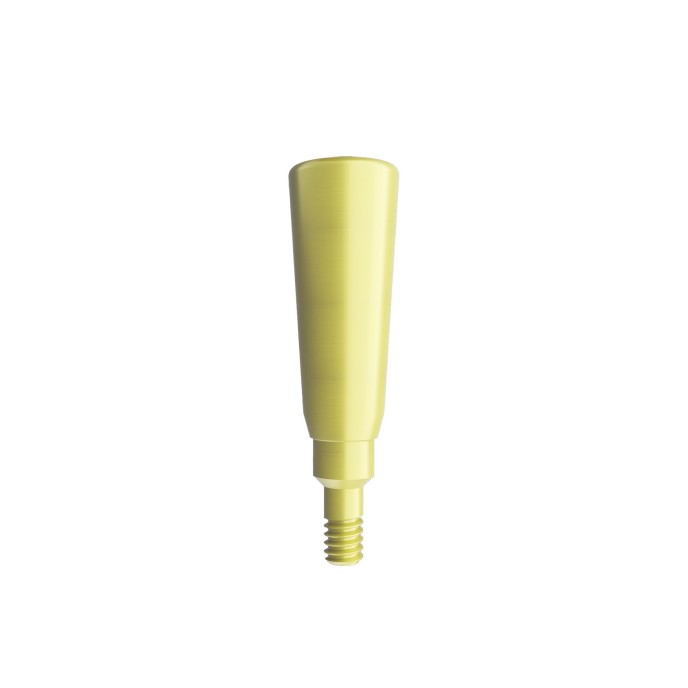

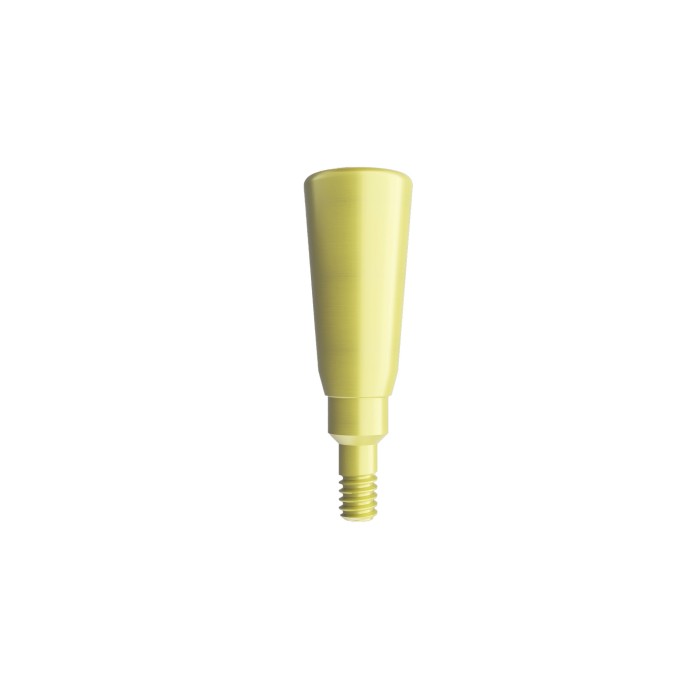

Straumann BL™ Compatible Healing Abutment
Product Overview
This healing abutment is compatible with the Straumann BL™ NC conical implant system. It shapes peri-implant soft tissue during healing to create an ideal emergence profile for final restorations. Multiple gingival height options fit different clinical gingival thicknesses.
Material
Medical titanium alloy Ti6Al4V (TC4). Yellow colored anodization.
Key Specifications
Platform: BL NC Conical Φ4.5
| Code | H (Gingival Height) | L (Total Length) |
| 13131101b | 2mm | 8.1mm |
| 13131102b | 6mm | 12.1mm |
| 13131103b | 8mm | 14.1mm |
| 13131104b | 10mm | 16.1mm |
Main dimensions (nominal values on 3D render; full tolerances in engineering drawing):
• Top diameter: Φ4.5
• Connection thread: M1.6×0.35-6g
• Neck diameter: Φ2.0
（For more specifications, please refer to the product catalog or contact our customer service.）
Application
Single-use dental implant accessory, supplied non-sterile. Installed on Straumann BL NC conical fixtures after implant surgery to contour gingiva and prepare soft tissue for final crown placement.
Advantages
• Precise conical connection, micron-level machining for stable seating
• Biocompatible yellow anodized TC4 titanium, smooth surface gentle on gingiva
• Multiple gingival height options for flexible clinical application
• Customization available upon request
