type：13192653b/13192655b
Platform：
BEGO SEM 4.5 Φ6.5 L3
BEGO SEM 4.5 Φ6.5 L5
We can customize it privately, if you have any needs, please contact us!

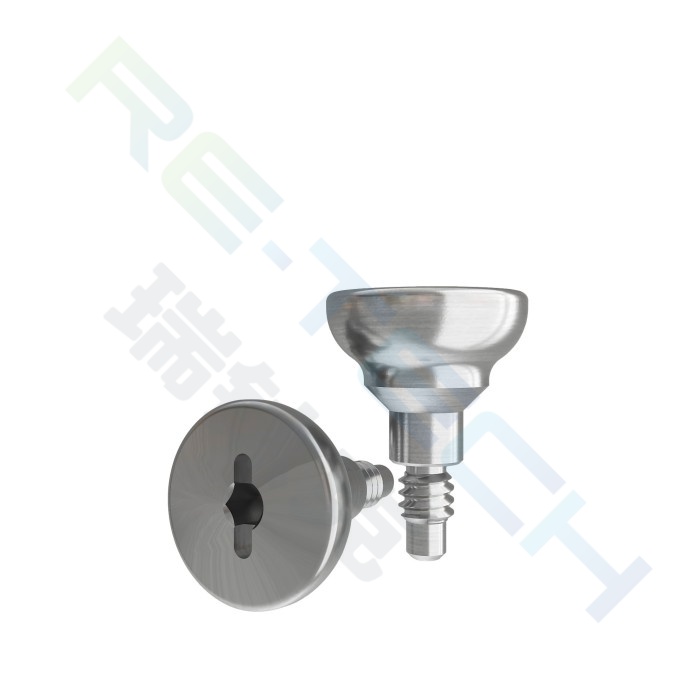

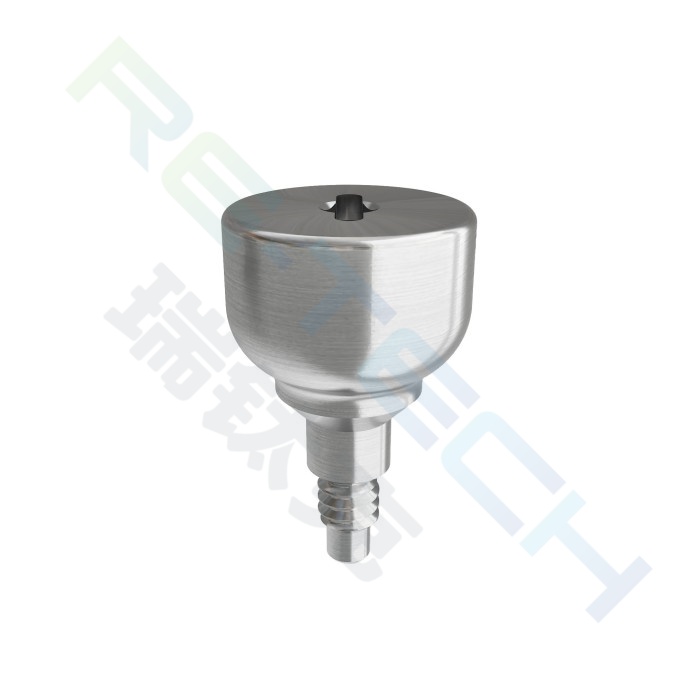

Healing Abutment compatible with Bego™
Product Overview
Healing Abutment compatible with Bego™ is specially designed to fit the Bego™ implant system and precision-cut from medical-grade TC4 titanium alloy. Used in the soft tissue healing phase after implant surgery, the product guides and trims the gingival morphology around the implant, establishes a smooth and natural transmucosal contour, and creates a stable and healthy soft tissue foundation for subsequent final restorations such as crowns and bridges. Multiple specifications are available to adapt to different gingival thicknesses and meet various conventional clinical implant cases.
Product Material
Medical-grade TC4 titanium alloy formed by high-precision CNC turning and milling. It features a clean and smooth surface, excellent biocompatibility and corrosion resistance in the oral environment. It reduces mucosal irritation and is suitable for long-term intraoral soft tissue healing environments.
Main Specifications & Parameters

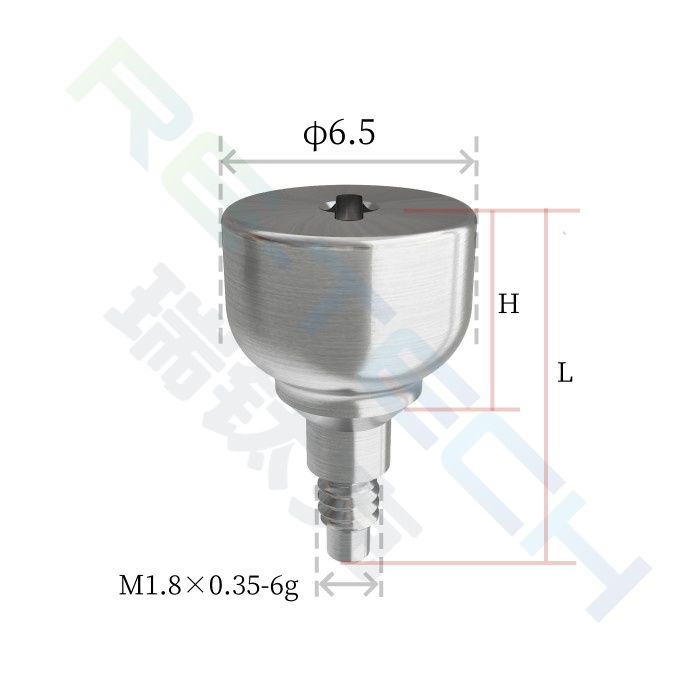

Note: D=Diameter; H=Head Height; L=Total Length. Supplied non-sterile.
| Platform | Available Diameter（D） | Available Head Height（H） | Total Length（L） |
| 4.5 | 6.5φ | 3, 5, 7mm | 8.6, 10.6, 12.6mm |
Other Available Specifications
| Platform | Available Diameter（D） | Available Head Height（H） |
| 4.1 | 5.0φ | 10, 3, 5, 7mm |
| 4.1 | 6.0φ | 3, 5, 7mm |
| 4.5 | 5.5φ | 10, 3, 5, 7mm |
| 5.5 | 6.5φ | 3, 5, 7mm |
| 5.5 | 7.0φ | 3, 5mm |
（For more specifications, please refer to the product catalog or contact our customer service.）
Scope of Application
This product is compatible with the Bego™ implant system for gingival contouring and soft tissue management during implant osseointegration. It is suitable for single crown and multi-unit fixed bridge restorations, and can be applied to implant restoration scenarios in anterior aesthetic zones and posterior functional zones.
Product Advantages
Precise Interface Matching: Precisely manufactured according to the connection structure of the Bego™ implant platform. It achieves smooth seating and tight fitting, remains firmly fixed during healing, reduces interface micromovement and protects the osseointegration process from disturbance.
Anatomical Profile for Soft Tissue Support: With a bionic contour design, it evenly supports gingival margins and papillae, maintains soft tissue tension, reduces gingival collapse and recession, creates a naturally soft transmucosal profile, and delivers aesthetic results for anterior teeth.
Surface with Low Plaque Adhesion: Finely machined surface minimizes plaque accumulation and lowers the chance of postoperative soft tissue inflammation, creating a favorable healing environment and preserving the health of peri-implant soft tissues.
Diverse Specification Combinations: Multiple sets of diameter and gingival height options are offered. Clinicians can select flexibly based on the patient’s gingival biotype, implant depth and restoration area to accommodate varied clinical conditions.
Stable One-piece Construction: Fully CNC machined with sufficient structural strength. It resists deformation throughout the soft tissue healing period, continuously supports the gingiva steadily and maintains the preset soft tissue morphology.
Optimized Subsequent Restoration Workflow: Well-formed gingiva after healing reduces secondary soft tissue trimming procedures, simplifies impression-taking and final restoration fabrication, and improves the fitting accuracy of the final prosthesis.
